Water Pressure Boosting & Transfer
For domestic water supply a water booster pump is designed to increase pressure in a water system in order to provide sufficient water flow and pressure to consumers.
Low pressure often occurs in residential buildings during peak system usage, for instance in the mornings and evenings when most people shower and cook. But it also occurs when multiple taps in the home are open, when the home is at the end of the supply line or when there simply is a leak in the mains pipes.
SCALA
Max flow : 7 m3/h
Head Max : 55 m
Liquid Temp : 0 to 45 deg
p max : 10 bar
CMB, CMBE
Max flow : 20 m3/h
Head Max : 112 m
Liquid Temp : 0 to 60 deg
p max : 10 bar
JET boosters
Max flow : 8 m3/h
Head Max : 62 m
Liquid Temp : 0 to 40 deg
p max : 8 bar
SB, SBA
Head Max : 46 m
Liquid Temp : 0 to 40 deg
p max : 10 bar
SP
Max flow : 20 m3/h
Head Max : 112 m
Liquid Temp : 0 to 60 deg
p max : 10 bar
SQ, SQE
Max flow : 8 m3/h
Head Max : 62 m
Liquid Temp : 0 to 40 deg
p max : 8 bar

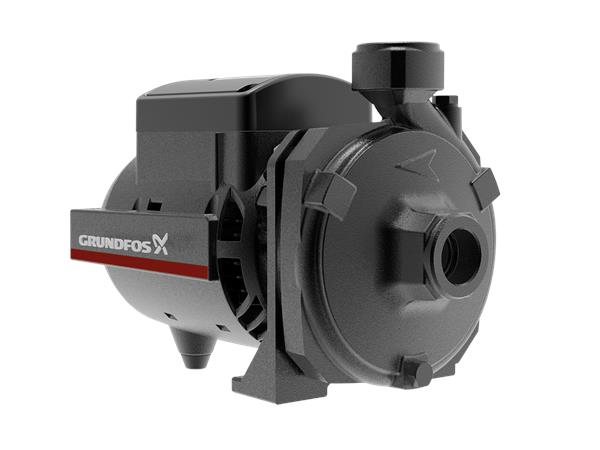

NS (Endsuction close coupled Single stage)
NS is a robust centrifugal pump designed for lifting water in domestic, industrial and agricultural installations. NS is available both as single-impeller and twin-impeller pump.
Max flow : 39 m3/h
Head Max : 64 m
Liquid Temp : -15 to 110 deg
p max : 8 bar
CM, CME (Endsuction long coupled multistage)
CM, CME are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions. The pumps are available in cast iron and stainless steel.
Max flow : 36 m3/h
Head Max : 132 m
Liquid Temp : -20 to 120 deg
p max : 16 bar
DPC (Digital Pump Controller)
This simple and reliable plug’n’play digital pump controllers are created to offer solutions in water and wastewater applications, be it ground water intake, water transfer, tank filling, tank emptying or even pressure boosting hydro pneumatic applications. An Ideal choice for all water utilities, residential, and industrial segments where reliable water supply is of utmost importance.
Features:
Over/ Under voltage, phase loss protection
Sensor less dry run protection
Memory function when power off & during power recovery
Got no clue where to start? lets do this. Drop us a line, we will handle it
Hot water Recirculation
Every year, millions of litres of water are wasted while your customers wait for their systems to reach the desired temperature, pouring their clean water, time, and money down the drain. Most homeowners don’t realise that this issue can be fixed quickly and cheaply.
In fact, domestic hot water pumps and recirculation systems are so cost-effective that they can even bring customers savings of up to 90% on the energy bill in the long run.
UPS Series 200
The Grundfos UP, UPS Series 100 circulator pumps are designed for heating, domestic hot-water, cooling and air-conditioning systems. The pumps are available in various materials and as twin-head variants, making them suitable for a range of applications. The pumps are reliable and maintenance-free.
Max flow : 14 m3/h
Head Max : 13 m
Liquid Temp : -25 to 110 deg
p max : 10 bar
MAGNA Series
The Grundfos MAGNA circulator pumps are designed for heating and cooling applications in commercial buildings. The pumps are available in both cast-iron and stainless-steel and as twin-head variants. The pumps are maintenance-free due to the canned-rotor type design.
Max flow : 81 m3/h
Head Max : 19 m
Liquid Temp : -10 to 110 deg
p max : 16 bar
ALPHA N
ALPHA is a high-efficiency circulator pump with stainless-steel pump housing suitable for domestic hot-water systems. Featuring integrated differential-pressure control as well as constant-curve mode.
Max flow : 14 m3/h
Head Max : 13 m
Liquid Temp : -25 to 110 deg
p max : 10 bar
COMFORT
COMFORT are energy-efficient hot water recirculation pumps designed for one- and two-family houses. The pumps are suitable for drinking water due to the corrosion-resistant pump housings.
Max flow : 14 m3/h
Head Max : 13 m
Liquid Temp : -25 to 110 deg
p max : 10 bar
Not getting hot water as soon as the tap is opened? pls leave a text.... we shall fix it
Not getting hot water as soon as the tap is opened? pls leave a text.... we shall fix it
Groundwater intake
Whether you are looking to get your water supply from a well or boost up from a break tank, there is a groundwater solution to match your needs.
High-quality submersible groundwater pumping solutions cover your water supply needs from small cabins in the woods to huge mansions with acres of lawn sprinklers. Regardless of your demands, you always get a dependable, efficient groundwater supply with a groundwater well pump ready to do the job.
SB, SBA
Head Max : 46 m
Liquid Temp : 0 to 40 deg
p max : 10 bar
SP
Max flow : 20 m3/h
Head Max : 112 m
Liquid Temp : 0 to 60 deg
p max : 10 bar
SQ, SQE
Max flow : 8 m3/h
Head Max : 62 m
Liquid Temp : 0 to 40 deg
p max : 8 bar
NS (Endsuction close coupled Single stage)
NS is a robust centrifugal pump designed for lifting water in domestic, industrial and agricultural installations. NS is available both as single-impeller and twin-impeller pump.
Max flow : 39 m3/h
Head Max : 64 m
Liquid Temp : -15 to 110 deg
p max : 8 bar
CM, CME (Endsuction long coupled multistage)
CM, CME are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions. The pumps are available in cast iron and stainless steel.
Max flow : 36 m3/h
Head Max : 132 m
Liquid Temp : -20 to 120 deg
p max : 16 bar
SCALA
Max flow : 7 m3/h
Head Max : 55 m
Liquid Temp : 0 to 45 deg
p max : 10 bar
CMB, CMBE
Max flow : 20 m3/h
Head Max : 112 m
Liquid Temp : 0 to 60 deg
p max : 10 bar
JET boosters
Max flow : 8 m3/h
Head Max : 62 m
Liquid Temp : 0 to 40 deg
p max : 8 bar
DPC (Digital Pump Controller)
This simple and reliable plug’n’play digital pump controllers are created to offer solutions in water and wastewater applications, be it ground water intake, water transfer, tank filling, tank emptying or even pressure boosting hydro pneumatic applications. An Ideal choice for all water utilities, residential, and industrial segments where reliable water supply is of utmost importance.
Features:
Over/ Under voltage, phase loss protection
Sensor less dry run protection
Memory function when power off & during power recovery
Flow and Head details will be sufficient to chose the right pump? definitely not it's more than that, we are here to suggest the right pump & system
Flow and Head details will be sufficient to chose the right pump? definitely not it's more than that, we are here to suggest the right pump & system
Simplifying wastewater
It is perfectly normal to think of domestic wastewater as something that just disappears down the drain all by itself. In many cases, that is exactly what happens.
However, if you are experiencing problems with backwater, flooding or groundwater entering cellars, it is a sign that the wastewater is yet to disappear. And when this happens, you need a solution either in the shape of a lifting station or a submersible drainage pump.
UNILIFT AP
Max flow : 9 lps
Head Max : 26 m
Liquid Temp : 0 to 70 deg
UNILIFT KP
Max flow : 4 lps
Head Max : 10 m
Liquid Temp : 0 to 50 deg
UNILIFT CC
Max flow : 4 lps
Head Max : 10 m
Liquid Temp : 0 to 40 deg
SEG Sewage grinder pumps (0.9-4 KW)
Max flow : 10 lps
Head Max : 48 m
Liquid Temp : 0 to 40 deg
p max : 6 bar
Multi-lift (Pre-assembled package)
Max flow : 55 lps
Head Max : 46 m
Liquid Temp : 0 to 40 deg
p max : 10 bar
PUST (Pre-fabricated pumping station)
Max flow : 3 lps
Head Max : 9 m
Liquid Temp : 0 to 75 deg
LC 231 pump controllers are designed for level control, monitoring and protection of pumping systems, one or two pumps starting DOL up to 12 Amp.
The LC 231 has a built-in motor protection and current measurement.
LC 241 level controllers offer a comprehensive range of features for wastewater pumping systems, monitoring and control of one or two pumps, up to 72 Amp.
The LC 241 is a metal or plastic cabinet solution offering modularity and customization according to your needs.
